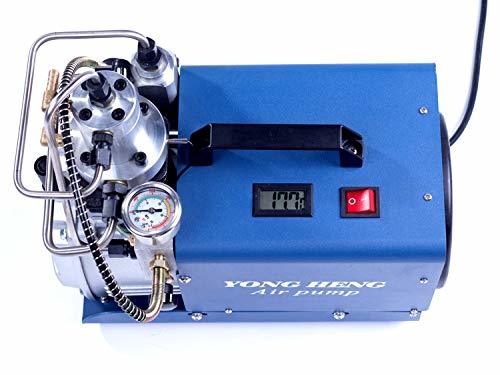

Compared with the simple version, our 110V high-pressure Air Pump is more efficient. Meanwhile, it adds a low-pressure store space structure with a Cyclone Separator which can decrease or prevent the engine oil flow to high-pressure space. Another additional structure is Safety Valve which helps to protect the compressor.
Main Features:
- High-pressure air pump inflating Working Pressure: 300BAR/ 30MPA/ 3000PSI
- Designed with two-stage compression and two water-oil separators for performance stability. It takes only 30 minutes to fill full 6.8L tank to 300BAR
- Wide Application: Perfect for fire fighting, paintball, leakage detecting, pressure-tight test, automobiles, air impermeability test, pressure proof test, etc.
- High-pressure air pump inflating speed: 2800r/min; Workflow: 50L/min; Power: 110V 60HZ; Air compressor cooling system: water cooling
- ATTENTION: 1.Auto-stop will not engage when the pressure reaches 300BAR/30MPA,you will have to turn it off manually. 2. The airgun compressor must be working with oil(0.4L ISO VG46 oil), so you must pay attention to the level of oil.
Notice:
1. The machine you received is not to add oil,please add the correct oil before you start using the machine first. Otherwise the machine will be damaged and can't work. The Oil type is ISO VG46. Don’t forget to put the lube oil into the compressor before running.
2. When running, if the machine vibrates violently, please add pad or towel under the compressor
3. When the compressor working, the cooling system must be working at the same time.
4. The machine must not be working without oil, so you must pay attention to the level of oil.
5.After adding oil, the oil seal must be replaced by the breathing rod .
1. The machine you received is not to add oil,please add the correct oil before you start using the machine first. Otherwise the machine will be damaged and can't work. The Oil type is ISO VG46. Don’t forget to put the lube oil into the compressor before running.
2. When running, if the machine vibrates violently, please add pad or towel under the compressor
3. When the compressor working, the cooling system must be working at the same time.
4. The machine must not be working without oil, so you must pay attention to the level of oil.
5.After adding oil, the oil seal must be replaced by the breathing rod .
Specification:
Voltage:110v
Power Rating:1.8KW
InflatingSpeed:2800R/Min
Noise:MAX 78DB
Air Flow Rate :50L/Min
Working Pressure:0-300BAR 0-30MPA 0-4500PSI
Cooling System:Water Cooling
Compression Stage:Two Stage
Lubrication Mode:Splash Type
Material of Cover:Cast Aluminum
The material of Motor:100% Pure Copper
Oil: ISO VG46 Anti-Wear Hydraulic Oil (the machine is without of oil because the oil is not allowed on the plane)
Test Inflating Result:It takes 3 mins 50 seconds to fill full 0.45L tank to 30MPA
Test Inflating Result:It takes 8 mins to fill full 1L tank to 300BAR
Package Included
: 1 x Electric Air Pump
1 x Accessories(as picture show)
Voltage:110v
Power Rating:1.8KW
InflatingSpeed:2800R/Min
Noise:MAX 78DB
Air Flow Rate :50L/Min
Working Pressure:0-300BAR 0-30MPA 0-4500PSI
Cooling System:Water Cooling
Compression Stage:Two Stage
Lubrication Mode:Splash Type
Material of Cover:Cast Aluminum
The material of Motor:100% Pure Copper
Oil: ISO VG46 Anti-Wear Hydraulic Oil (the machine is without of oil because the oil is not allowed on the plane)
Test Inflating Result:It takes 3 mins 50 seconds to fill full 0.45L tank to 30MPA
Test Inflating Result:It takes 8 mins to fill full 1L tank to 300BAR
Package Included
: 1 x Electric Air Pump
1 x Accessories(as picture show)
