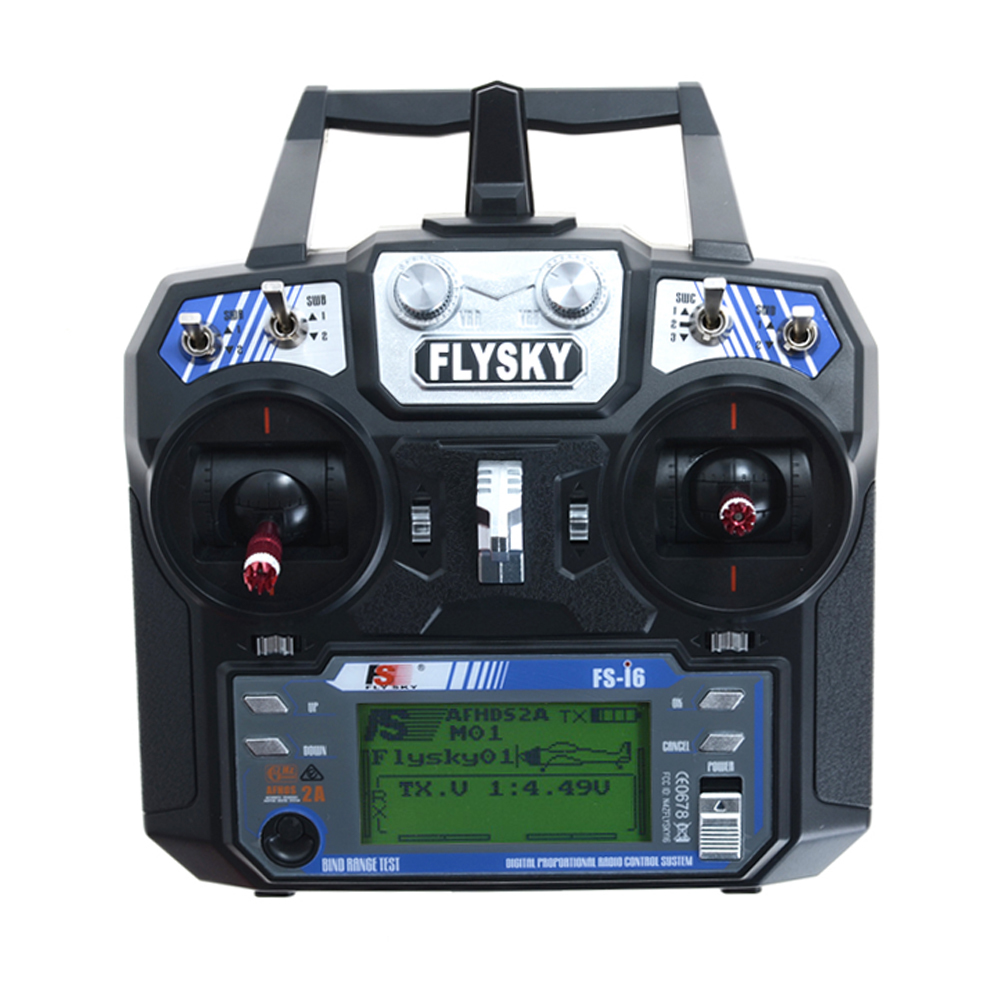

Descriptions:This FS-i6 Remote Control Receiver Transmitter is suitable for all kinds of DIY Aircraft, like multi-spin/fixed-wing/multi-axis/helicopter/traverser.
Main Features:
1. LCD backlit dot matrix screen: different data operations on the LCD controller can get different results.
2. Full Angle gain antenna: Double gain antenna is adopted to make signal transmission more stable and stronger and enhance directional stability.
3. Bidirectional transmission system: a better grasp of the working state of the current model, thus increasing the fun of control and more secure control model.
4. Built-in error correction AFHDS2A frequency hopping digital system: AFHDS2A frequency hopping digital system is adopted.
Specifications:
Number of Channels: 6
Low-voltage Alarms: Data output when it is lower than 4.2V: PPM of PS2 interface
Frequency Range: 2.4055-2.475GHZ
Power Supply: 4 no. 5 batteries (shipped without batteries)
Bandwidth: 500KHZ
Antenna Length: 26mm*2 (double antenna)
Number of Bands: 140
Airframe Weight: 0.392kg
Transmitter Power: not higher than 200dBM
Input Power: 6V 1.5AA*4
Modulation Mode: GFSK
Rocker Resolution: 4096 level
Package Included:
1 x Remote control
1 x Receiver
1 x Instruction Manual
