Descriptions:
A high-speed range and eccentric working moments are combined in these Vibrators to produce a powerful vibration. The body is made from an extruded stove enameled aluminum section and the hard-coated end plates enable the vibrator to be used in the food and pharmaceutical industries. The GT-turbine vibrators comply with current international noise regulations under factory test conditions.
Design:
The vibration is produced by the centrifugal force of the positive and negative unbalance moments in the rotor, the rotor is supported on two heavy-duty,pre-lubricated, matched shielded ball bearings, A special long-life grease ensures long working life. The inner and outer raceways of the bearings are designed so that the bearings can be easily replaced using only a pin-wrench. The endplates are fitted with right-and left-hand threads and self-locking.
Main Features:- The GT-turbine vibrators comply with current international noise regulations under factory test conditions.
- The body is made from an extruded stove enameled aluminum section and the hard-coated end plates enable the vibrator to be used in the food and pharmaceutical industries.
- A high-speed range and eccentric working moments are combined in these Vibrators to produce a powerful vibration.
- The vibration is produced by the centrifugal force of the positive and negative unbalance moments in the rotor, the rotor is supported on two heavy-duty,pre-lubricated, matched shielded ball bearings.
- A special long-life grease ensures long working life. The inner and outer raceways of the bearings are designed so that the bearings can be easily replaced using only a pin-wrench. The endplates are fitted with right-and left-hand threads and self-locking.
Package Included:

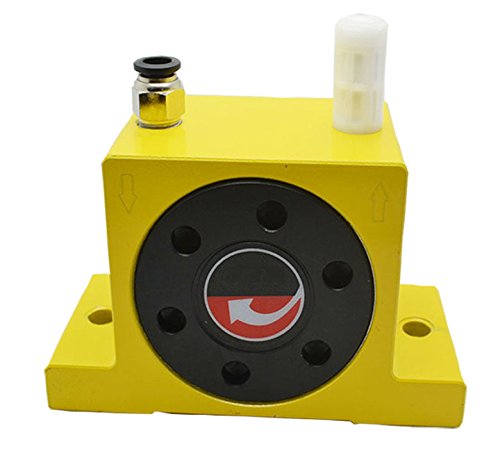

1 x Pneumatic Industrial Turbine Vibrator
