V311 OBD Handheld Code Reader Main Features:

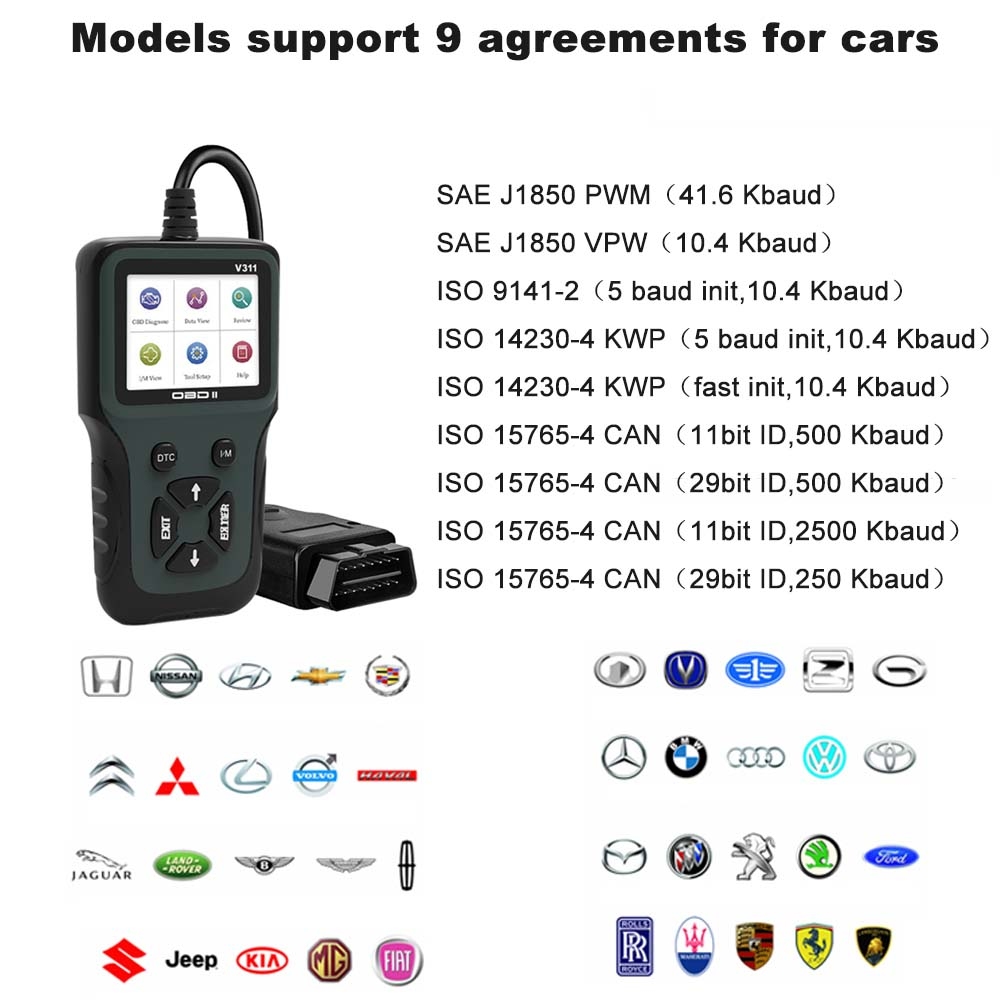

1. Support nine standard protocols of OBD II/EOBD: SAE J1850 PWM (41.6Kbaud), SAE J1850 VPW
(10.4Kbaud),ISO9141-2(5 baud init, 10.4Kbaud),ISO14230-4 KWP (5 baud init, 10.4 Kbaud),ISO14230-4KWP (fast init, 10.4 Kbaud),ISO15765-4 CAN (11bit ID, 500 Kbaud),ISO15765-4 CAN (29bit ID, 500 Kbaud),ISO15765-4 CAN (11bit ID, 250 Kbaud),ISO15765-4 CAN (29bit ID, 250 Kbaud).

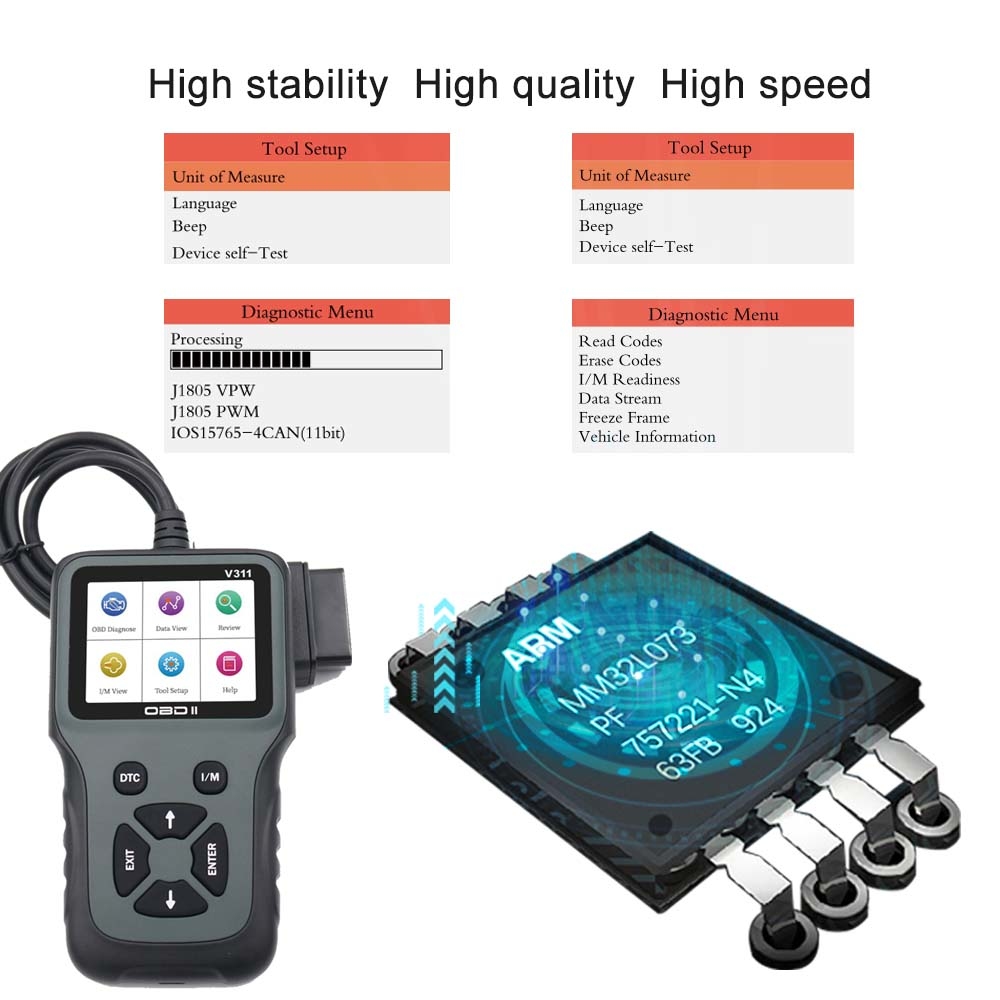

2. Support OBD functions such as vehicle fault diagnosis and real-time data flow.
3. It has the functions of data waveform display, data storage, and playback.
4. Data with I/M emission detection.

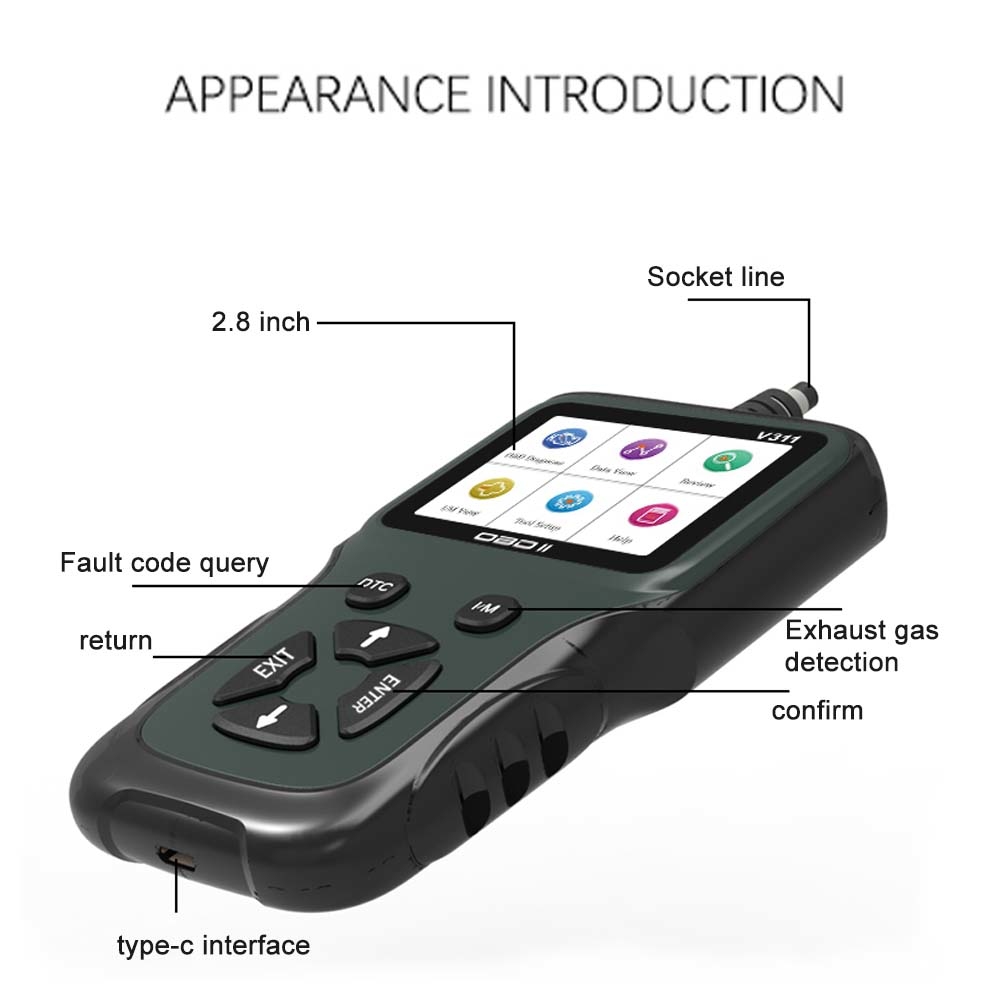

5. 2.8-inch color LCD display, reaching 240RGB*320 resolution.
6, It has strong reliability and a wide range of supply voltage 8-36V.
7. The V311 OBD posses a stronger overcurrent and overvoltage protection function.
Description:
Main Control Chip: STM32F103VET6
Software Platform: windows support
Operating voltage: DC 8-36V
Working Current: 50mA
Standby Current: 5mA
Operating Environment: -20 - 65℃
Storage Temperature: -30 - 80℃
Overall Dimensions: 154.5*85*24mm
Weight: 198g

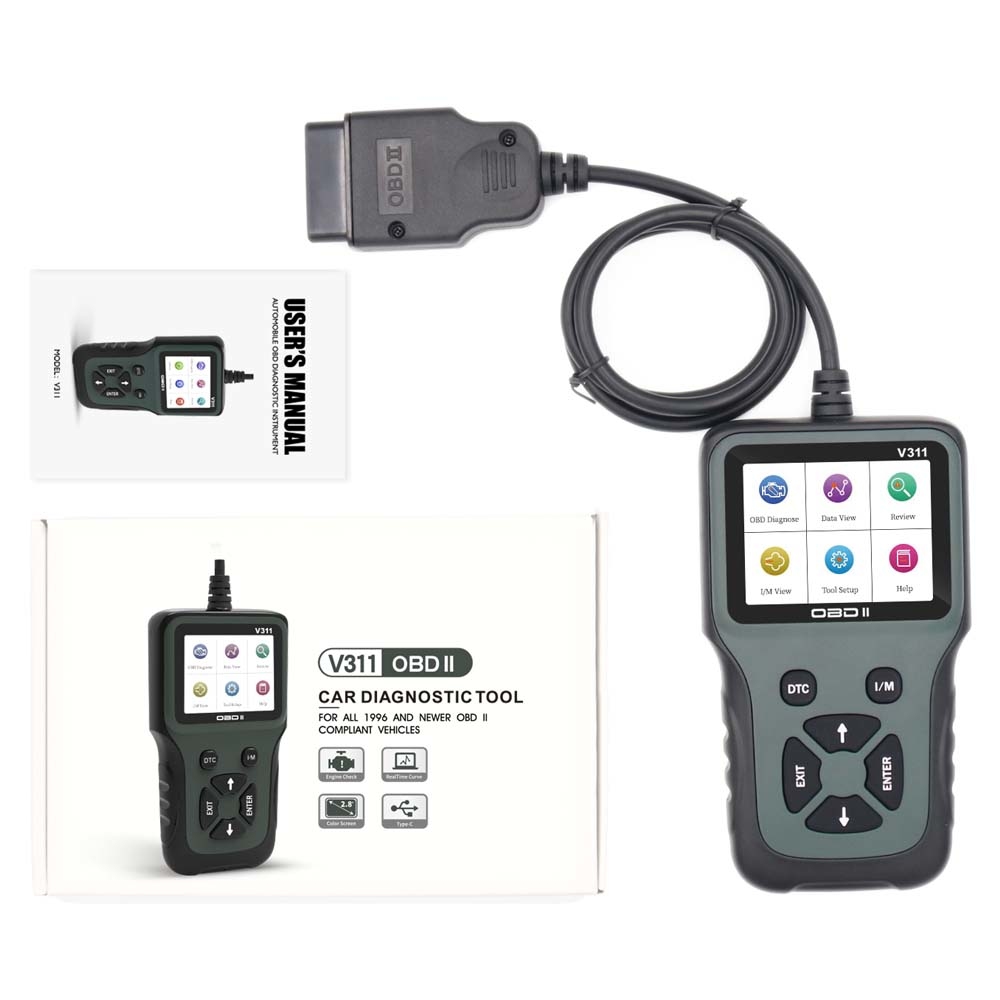

Package List:
1x V311 Code Reader
Note:
The products are not compatible with new energy vehicles, hybrid vehicles and diesel vehicles, which are not OBD2 models.
