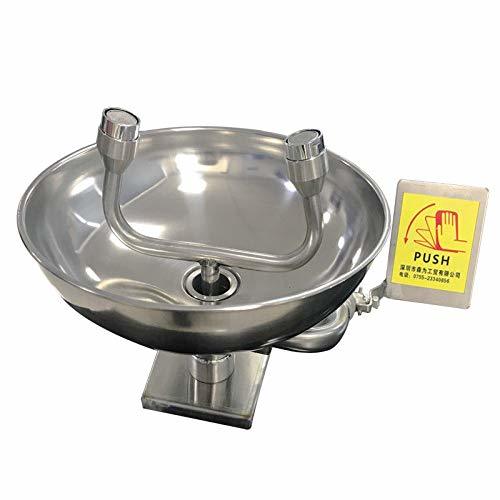

Where to use this eyewash equipment:
- Eye washer Use ball valves to control spray and wash eyes, respectively.
- Features a push handle activation, Easy to operate, fast opening and closing, reliable sealing
- The rinsing nozzle of the punching nozzle is a soft foam-like water stream, which improves the cleaning efficiency by 50% compared with ordinary eyewash nozzles.
- Stainless steel 304 inlet pipe bowl, stay-open ball valve switch & eye wash bowl
- Dual aerated spray heads with flip top caps, Integral flow controls.
Battery charging areas,
High dust areas,
Dipping operations, and
Hazardous substances dispensing areas.
1. Eye / face wash bowl: 260mm dia. stainless steel with 304SS cover
2. Eye wash strainer : stainless steel, built-in chemical resistant PP
3. Eye wash : stainless steel 304 inlet pipe, stay-open ball valve switch & eye wash bowl
4. Sign: Furnished with luminous identification sign.
5. Eyewash flow rate: 12~18L/Min
6. Activation: push plate
Eyewash Mounting ：Wall mount
Eye Wash Bowl Material ：304 stainless steel
Eye Wash Activates by ：push plate Eye Wash Covering ：YES
Pipe Material：304 stainless steel
Eye Wash Handle Material：Aluminum alloy
1. Fluid: drinking water or fire-fighting water
2. Standard pressure: 0.2~0.4MPA
3. Nominal pressure: 0.4MPA
4. Sealing pressure: 0.45MPA
5. Spray flow L/min: 120-180
6. Eyewash flow L/min: ≥12
7. In complement with emergency eyewash and shower standard ANSI Z358.1.2009 and EN 15154-1:2006 + AC: 2014
8. The control switch or valve of the eyewash device and the eyewash nozzle quickly start.
9. Applicable conditions: normal temperature pure water or water standard
1 x Emergency Eyewash
